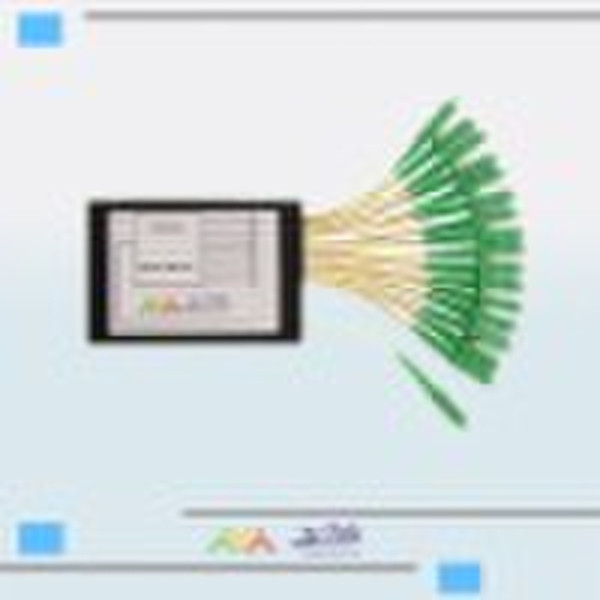

16Ch CWDM

3c-Link's' Coarse wavelength division multiplexer (CWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provideslow insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . 3c-Link's products are Telcordia qualification tested. Features Applications Low Insertion LossWide Pass BandHigh Channel IsolationHigh Stability and ReliabilityEpoxy Free Optical Path Line MonitoringWDM NetworkTelecommunicationCellular ApplicationFiber Optical AmplifierAccess Network Performance SpecificationsParameterMUXDEMUXOperating Wavelength (nm)1310,1330,1350,1370,1390,1410,1430,1450,1470,1490,1510,1530,1550,1570,1590,1610 Center Wavelength Accuracy (nm)± 0.5Channel Spacing (nm)20Channel Passband (@-0.5dB bandwidth) (nm)>13Insertion Loss Over Passband (Exculding Connectors) (dB)<3.5Channel Uniformity (dB)< 1.0Channel Ripple (dB)< 0.5Isolation (dB)AdjacentN/A>30Non-adjacentN/A>40Polarization Dependent Loss (dB)< 0.10Polarization Mode Dispersion (ps)< 0.1Directivity (dB)>50Return Loss (dB)>45Power Handling (mW)300Operating Temperature (°C)0 +70Storage Temperature (°C)-40 +85Dimensions (mm)L150 x W95 x H20Specifications may change without notice
